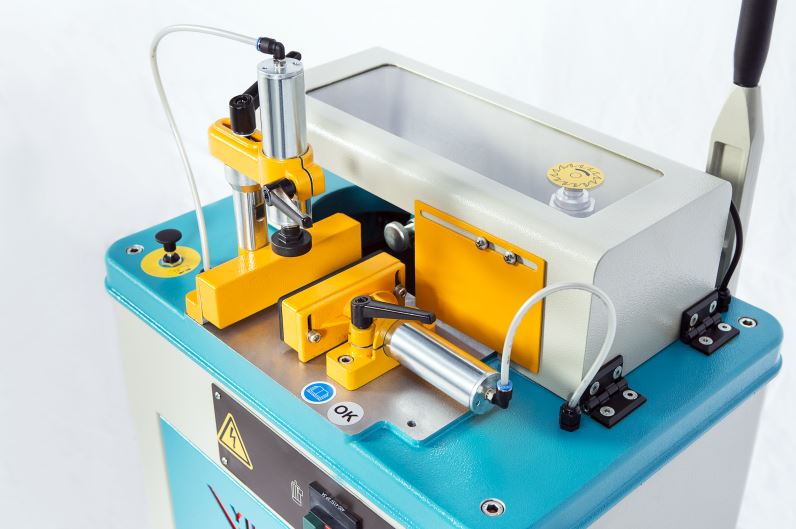

KM 211 S
End Milling
Machine which works manually, ideal for end milling operations on aluminium profiles precisely
Technical Data
1200 W / 400V AC 3P+PE / 50/60 Hz.
Motor Power
3000 RPM
Blade Speed
DMax: Ø170 mmd: Ø30 mm
Blade Diameter
14 L/min
Air Consumption
6-8 bar
Air Pressure
44x74x116
Dimensions
66 Kg / 61 Kg
Weight
STANDART AKSESUARLAR
- ✓ 1 x pneumatic vertical clamp
- ✓ 1 x pneumatic horizontal clamp
- ✓ Spray tool lubrication system
- ✓ Air gun
OPSIYONEL AKSESUARLAR
- ✓ Milling cutter set
- ✓ MKN 100 length stop (1m)
GENEL OZELLIKLER
- ✓ High quality end-milling operations by the manual operation
- ✓ Safety operations with top guard
- ✓ Practical cutter adjustment thanks to the gap parts
- ✓ Fixing the workpiece firmly thanks to the pneumatic vertical and horizontal clamps
- ✓ Robust machine stand
- ✓ Profile clamping capacity: H:160 x W:150 mm
- ✓ Max. end-milling capacity: H:90 x W:70 mm
- ✓ Maximum cutter diameter (D x d): Ø170 x Ø30 mm
