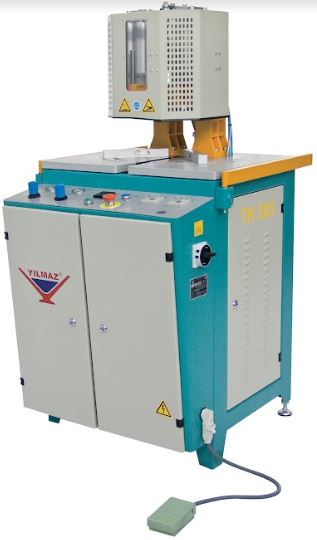

TK 505
Welding
This machine is ideal for the single corner welding of PVC profiles between 30°- 180°
Technical Data
1.5 kW / 230V AC 1P+N+PE / 50/60Hz.
Motor Power
----
Blade Speed
----
Blade Diameter
20 L/min
Air Consumption
6-8 bar
Air Pressure
74.5x194.5x155.5
Dimensions
158 Kg / 126 Kg
Weight
STANDART AKSESUARLAR
- ✓ Profile support arms
- ✓ Electrical foot pedal
OPSIYONEL AKSESUARLAR
- ✓ Special welding molds
GENEL OZELLIKLER
- ✓ Enable the welding of all angles between 30°-180°infinitely adjustable
- ✓ Practical adjustment of standard (2.0 mm) or seamless (0.2 mm) welding options manually
- ✓ Maximum H:180 mm welding capability
- ✓ All parameters such as melting and welding time, welding pressure are set independently
- ✓ Automatically start and finish the welding cycle
- ✓ Adjusting the heat between 0-300°C by means of the electronic thermocouple
- ✓ Thanks to the profile support arms, long profiles can be easily welded
- ✓ User friendly with the features of cleaning the plates and replacing teflon very easily and quickly
- ✓ Profile support arms are supplied as standard in both directions
- ✓ Clamping the profiles separately via foot pedal
- ✓ Saving of time thanks to the practical mold change feature
