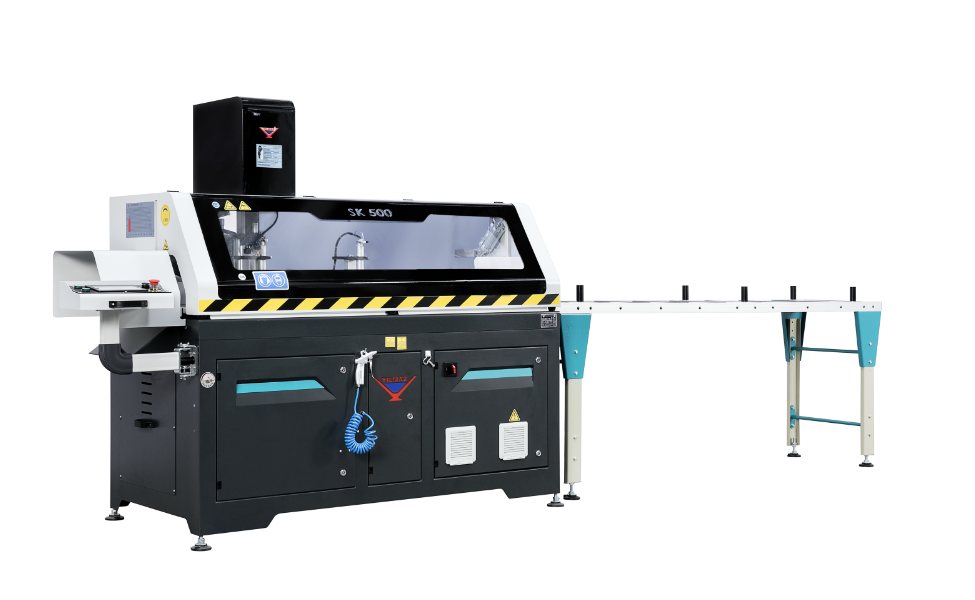

SK 500 D
Cutting
SK 500 D is designed for the strait cutting and vertical drilling operations of the large size of profiles made of PVC and aluminium by means of Ø500 mm of saw blade at 90°. It is ideal for the serial and precise slicing and drilling operations. Vertical Drilling Unit is a servo-controlled and positioned on the SK 500 D automatic achine. It is designed for single or multiple 90° vertical drilling and cutting in PVC and aluminium profiles.
Technical Data
5.5 kW / 400V AC 3P+PE / 50/60 Hz.
Motor Power
---
Blade Speed
2500 RPM D:Ø500 x d:Ø30-32 mm
Blade Diameter
150 L/min
Air Consumption
6-8 bar
Air Pressure
134x472x200
Dimensions
527.0
Weight
STANDART AKSESUARLAR
- ✓ L:2.5 / W:0.5 meter of infeed roller
- ✓ Equipped with saw blade Ø 500 mm
- ✓ Spray saw blade lubrication system
- ✓ Air gun
- ✓ 3 x pneumatic horizontal clamps
- ✓ 3 x pneumatic vertical clamps
- ✓ Swarf collection tray
- ✓ Drilling Unit with ER20 collet & Ø5 drilling bit
OPSIYONEL AKSESUARLAR
- ✓ Spare saw blade with Ø 500 mm
- ✓ VCE 1570 chip vacuum extractor
- ✓ Additional 2.5 meter of outfeed or infeed conveyor
- ✓ Connection part for additional 2.5m of conveyor
- ✓ MHR 60 cylinder kit to increase drilling stroke from 30 mm to 60 mm
GENEL OZELLIKLER
- ✓ Suitable for high-volume slicing and vertical drilling of aluminum profiles for window manufacturing and industrial applications
- ✓ High precision servo / synchronous motors and internationally recognized components
- ✓ Saving of time by means of servo-controlled workpiece infeed speed.
- ✓ Horizontal and vertical clamping of the workpiece during the sawing operation
- ✓ Automatic table retraction feature protects the surface of the workpiece against the scratches arising during the saw blade downward motion
- ✓ High cutting accuracy by means of the robust mechanical structure
- ✓ Single or multi-bar (bundle) cutting features
- ✓ Spray saw blade lubrication system
- ✓ Large memory capacity for the cutting programs
- ✓ The machine shut down automatically after reaching the requested quantity
- ✓ Pneumatically opening safety guard
- ✓ Windows based industrial PC and 7’’ LCD color touch screen
- ✓ Remote connection via internet and providing technical support
- ✓ Cutting list transfer with ’csv’ format via USB
- ✓ Min./max. cutting size per cycle: 5 / 1000 mm
- ✓ Min./max. clamping capacity: Height: Hmin:5mm, Hmax.:160mm / Width: Wmin.: 5mm, Wmax.: 370 mm
- ✓ Last remaining waste size: 230 mm
- ✓ Servo controlled drilling unit on Y axis (see below specification)
- ✓ Sawing motor: 4 kW
- ✓ Min. cutting length 5 mm
