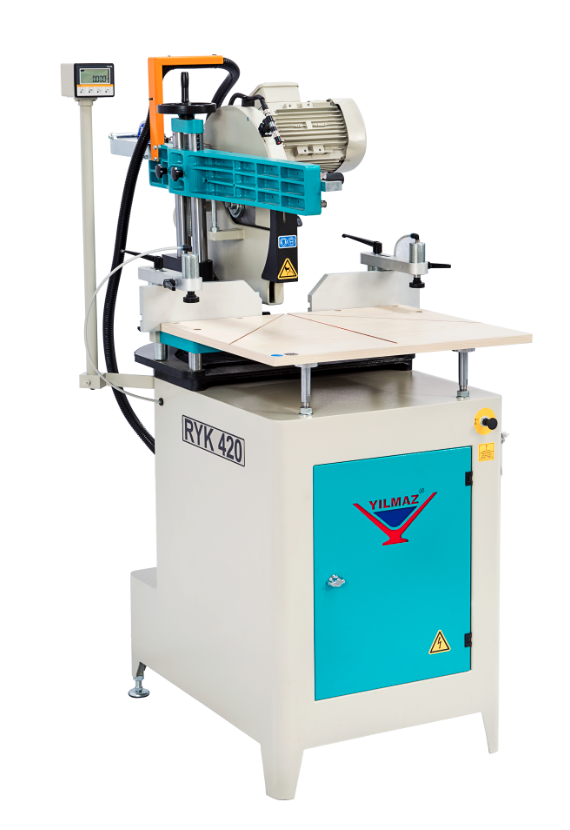

RYK 420 S

Cutting

RYK 420 S Radial Saw Machine is designed for the strait or angular cutting operations of the large size of materials made of aluminium, brass and non-ferrous metals RYK 420 S allows straight and angular cuttings thanks to the pivoting and tilting head

Каталог / Ръководство

Technical Data

2.2 kW /4.7A / 400V AC 3P+PE / 50/60 Hz.

Motor Power

---

Blade Speed

D: Ø420 mmd: Ø30/32 mm

Blade Diameter

24 L/min

Air Consumption

6-8 bar

Air Pressure

184x76x159

Dimensions

255 Kg / 202 Kg

Weight

STANDART AKSESUARLAR

✓ Equipped with Ø 420 mm saw blade for aluminium cutting operations
✓ Air gun
✓ 2 x pneumatic vertical clamp
✓ Spray saw blade lubrication system
✓ Laser marking indicating the cutting line
✓ Brake unit working with motor stop button
✓ Digital display for ease adjustment of pivoting angle

OPSIYONEL AKSESUARLAR

✓ Hydraulic control unit for saw head feed rate
✓ Special miter for longitudinal cutting operations
✓ DKN 602 length stop
✓ Connection kit for DKN and MKN length stops
✓ Spare saw blade for aluminium cutting, Ø 420 mm

GENEL OZELLIKLER

✓ Performing of different cutting operations are possible by means of the pivoting and tilting features
✓ Powerful cutting operations by means of the 2.2 kW 3000 RPM motor
✓ Smooth movement, high precision and great sensitivity provided with gas spring, linear bearings and ergonomic handle
✓ Cast iron construction of the body that is strong and lasting
✓ Robust mechanical construction enables the ease of adjustment for the requested cutting angles
✓ Location points at 15°-22,5°-30°-45°-60°-90° both left and right
✓ Pivoting range from 45° right to 60° left infinitely adjustable
✓ Tilting range from 90° to 45° left
