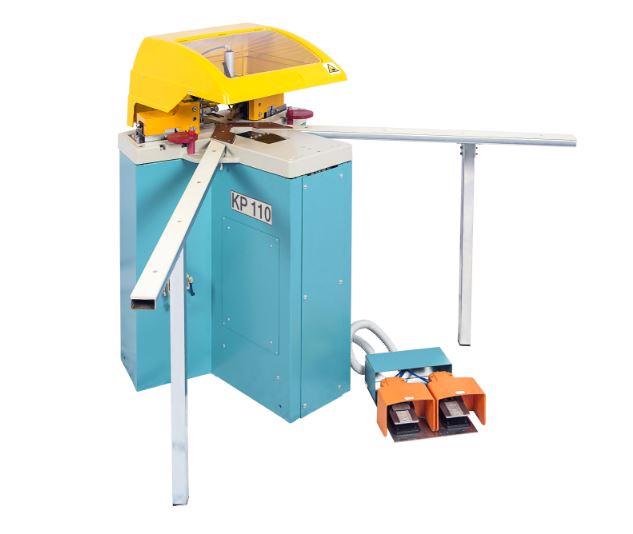

KP 110

Corner Crimping

KP 110 machine is designed and constructed for the pneumatically crimping and correct assembly of aluminium profiles. The machine works according to the pneumatic crimping system

Каталог / Ръководство

Technical Data

Hmax:120 mmWmax: 150 mm

Profil

3500 kg x 2

Kose Pres

25 Lt/min

Air Consumption

7-10 Bar

Air Pressure

123x195x131

Dimensions

350 Kg / 320 Kg

Weight

STANDART AKSESUARLAR

✓ 1 set of 3 mm, 1 set of 5 mm and 1 set of 7 mm crimping knives
✓ 2x pneumatic vertical clamps
✓ 2x profil support arms
✓ 2x allen key (4 and 5 mm)

OPSIYONEL AKSESUARLAR

✓ Special crimping knives

GENEL OZELLIKLER

✓ It is designed through the pneumatically crimping system
✓ Cast iron construction of the body that is strong and lasting
✓ Magnetic tool gripping system that is adjustable according to the shape and height of the profiles
✓ Special millimeter of scale that allows reading of the positioning value of the knives
✓ Simultaneous stroke of crimping heads
✓ Double-acting stroke of bracing clamp appears from the table
✓ Support arms on the left and right of the machine
✓ The machine is equiped with the foot pedals for the operation control during the machining cycle
✓ Hydraulically working 90° of bracing clamp for inner corner
✓ Operator safety guard
✓ Maximum crimping height: H120 mm
✓ Maximum profile clamping height H140 mm
✓ The minimum inner frame size that can be assembled is 200 x 200 mm
