KM 212
End Milling

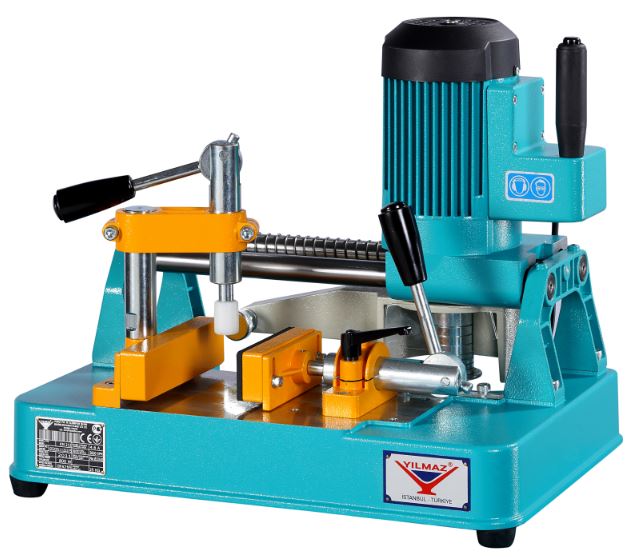

Portable machine which works manually, ideal for end milling operations on PVC and aluminium profiles precisely.
Technical Data
800 W / 230V AC 1P+N+PE / 50Hz.
Motor Power
3000 RPM
Blade Speed
DMax: Ø120 mmd: Ø30mm
Blade Diameter
57x51x42
Dimensions
26.0 / 26 Kg
Weight
STANDART AKSESUARLAR
- ✓ 1x manual vertical clamp
- ✓ 1x manual horizontal clamp
OPSIYONEL AKSESUARLAR
- ✓ Machine stand
- ✓ Milling cutter set
GENEL OZELLIKLER
- ✓ High quality end-milling operations by the manual operations
- ✓ Practical cutter adjustment thanks to the spacers
- ✓ Fixing the workpiece firmly thanks to the manual vertical and horizontal clamps
- ✓ Profile clamping capacity : H:80x W:160 mm
- ✓ Max. end-milling capacity : H: 80 x W: 45 mm
- ✓ Maximum cutter diameter (D x d): Ø 120 x d Ø 30 mm
