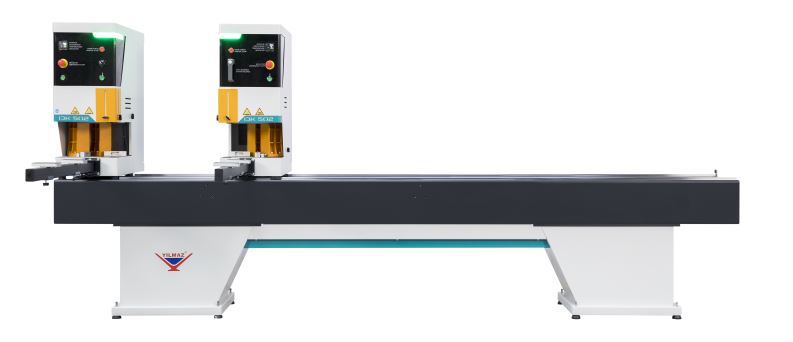

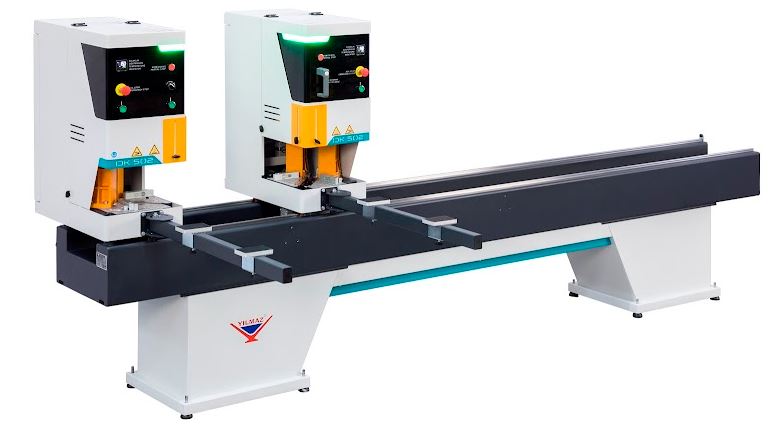

DK 502
Welding
Machine is ideal for welding process of PVC plastic profiles at two corners.
Technical Data
3.0 kW / 230V AC 1P+N+PE / 50/60Hz.
Motor Power
Hmax: 180 mmHmin: 30 mmWmax: 140 mmWmin: 30 mm?: 30° - 180°
Profil
---
Blade Speed
---
Blade Diameter
180 L/min
Air Consumption
6-8 BAR
Air Pressure
410x170x80
Dimensions
700 Kg / 611 Kg
Weight
STANDART AKSESUARLAR
- ✓ Equipped with two pcs.of support arms
OPSIYONEL AKSESUARLAR
- ✓ Special welding molds on demand
GENEL OZELLIKLER
- ✓ Fully automatic two corner welding of PVC window profiles at an angle of 90°
- ✓ Single head welding possibility
- ✓ Possibility of precise welding of profiles between 30°-180° on the left head
- ✓ All parameters such as melting and welding time, welding pressure are set on the control panel independently
- ✓ Continuous precision of welding quality by means of linear rails
- ✓ Welding of two corners of window frames or sash profiles are carried out in one cycle
- ✓ User friendly with practical teflon change feature by means of the roller system
- ✓ Saving of time by means of most practical mold change system in the market
- ✓ Capable of adjusting the clamp and welding pressure according to the profile type
- ✓ Adjusting the heat between 0-300°C via electronic thermostat
- ✓ Practical setting of standard (2 mm) or seamless (0.2 mm for free of flashes) welding options
- ✓ The movable right unit moves manually
- ✓ After clamping the profiles, the welding is carried out automatically
- ✓ The moveable right welding unit is equipped with a brake system
- ✓ For safety reasons, the clamp pistons operate with low pressure control system
