CA 603
Corner Cleaning

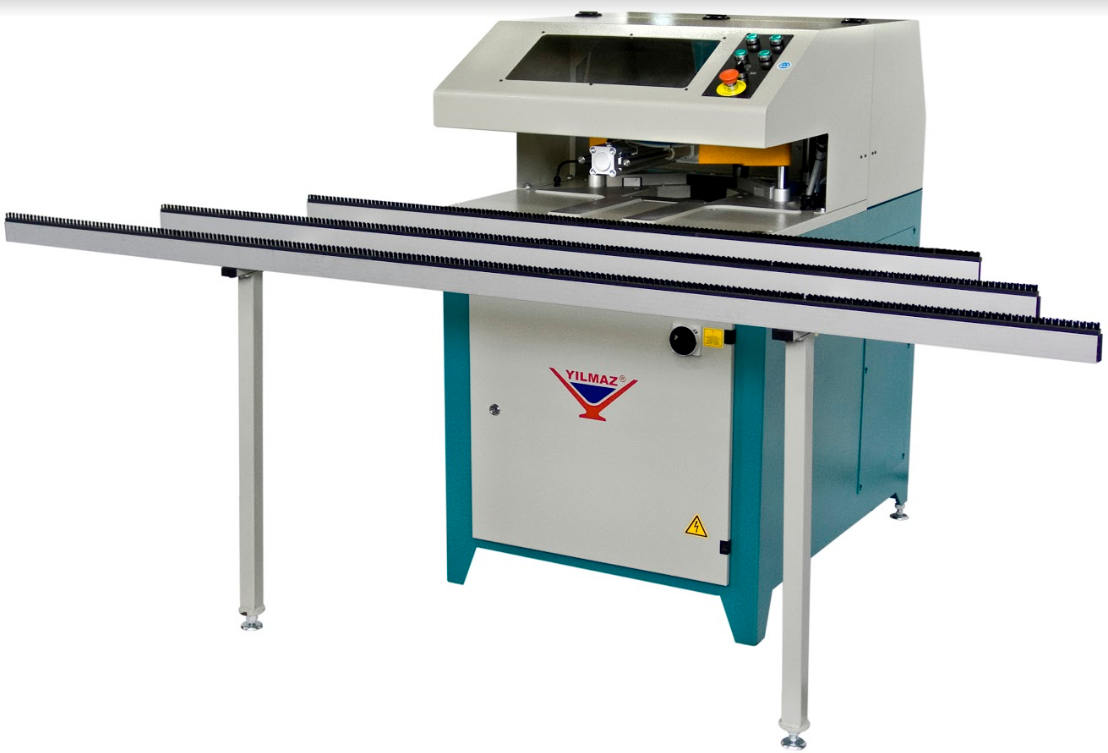

CA 603 Single Corner Cleaning Machine is used for striping of bottom and top surfaces and cleaning outer corners of 90° PVC cleaning profiles
Technical Data
2400 W / 400V AC 3P+PE / 50/60 Hz.
Motor Power
3000 RPM
Blade Speed
Dmax: Ø210 mm d: Ø32 mm
Blade Diameter
48 L/min
Air Consumption
6-8 bar
Air Pressure
152.5x240.5x129.5
Dimensions
273 Kg / 237 Kg
Weight
STANDART AKSESUARLAR
- ✓ Air gun
- ✓ Profile support table with brushed
- ✓ Special corner cleaning cutter set
OPSIYONEL AKSESUARLAR
- ✓ Cleaning cutter for colored profiles
- ✓ V type of cleaning cutter for white profiles
GENEL OZELLIKLER
- ✓ High quality stripping and cleaning operations by means of the hydro-pneumatic system
- ✓ Processing capability for max. profile dimension: W130-H180 mm
- ✓ Processing capability for min. profile dimension: W30-H50 mm
- ✓ Min. inner and outer frame sizes for width W:30 and W:60 mm of profiles: L:350 x L:350 and L:380 x L:380 mm
- ✓ Pneumatically working serial blade changing function that makes working easier
- ✓ Fixing the workpiece firmly by means of the vertical and horizontal clamps
- ✓ Stops automatically after stripping and cleaning operation
- ✓ PLC operation system
- ✓ Centring system to fit the profiles properly on the setsquare
- ✓ Robust machine stand
- ✓ Stripping blade levels are adjustable according to laminated and unlaminated profiles
- ✓ Processing capability of 4 different PVC profile
- ✓ 4 different cutter set can be mounted on both block
