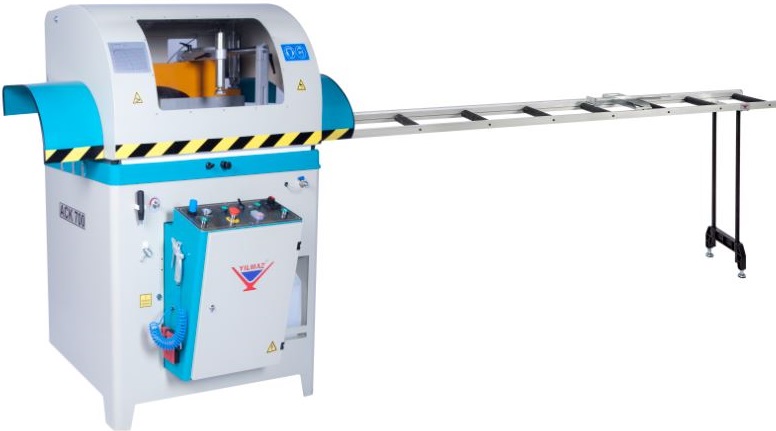

ACK 700
Cutting
ACK 700 is designed for the strait or angular cutting operations of the large size of profiles made of PVC and aluminium materials by means of Ø 700 mm of saw blade.
Technical Data
4.0 kW / 400V AC 3P+PE / 50/60 Hz.
Motor Power
1.950 RPM
Matkap Donus Hizi
1950 RPM
Blade Speed
Ø700/Ø38 mm
Blade Diameter
180 L/min.
Air Consumption
6-8 bar
Air Pressure
152x459x160
Dimensions
560 Kg / 500 Kg
Weight
STANDART AKSESUARLAR
- ✓ Equipped with saw blade Ø 700 mm and 4 Kw motor
- ✓ Spray saw blade lubrication system
- ✓ MKN 301 roller conveyor (3 m)
- ✓ 2 x vertical and 2 x horizontal clamps
- ✓ Air gun
- ✓ 2 x in-feed & out-feed tunnels for operator safety
- ✓ Swarf Manifold-Top and Bottom
- ✓ Safety PLC in the electrical cabinet for the emergency stop, top & bottom covers locking switch, air pressure, saw blade home position and phase monitoring.
OPSIYONEL AKSESUARLAR
- ✓ Laser marker indicating the cutting line
- ✓ Spare saw blade, Ø 700 mm
- ✓ VCE 1570 chip vacuum extractor
- ✓ DKN 302 length stop
- ✓ DKN 602 length stop
- ✓ SKN 300 length stop
- ✓ SKN 600 length stop
- ✓ HDL 400 length stop
- ✓ HDL 700 length stop
GENEL OZELLIKLER
- ✓ Two-hand run safety operation
- ✓ Location points at 75°,60°,45°,30°,22.5°,15°,0° both left and right
- ✓ Pivoting range from -75° left to +75° right infinitely adjustable
- ✓ Hydro-pneumatic saw feed
- ✓ Adjustable saw blade feeding speed
- ✓ Interior LED lighting
- ✓ Pneumatically opening safety guard
- ✓ Safety locking switches on top guard and front doors
- ✓ Double acting clamps for operator safety
