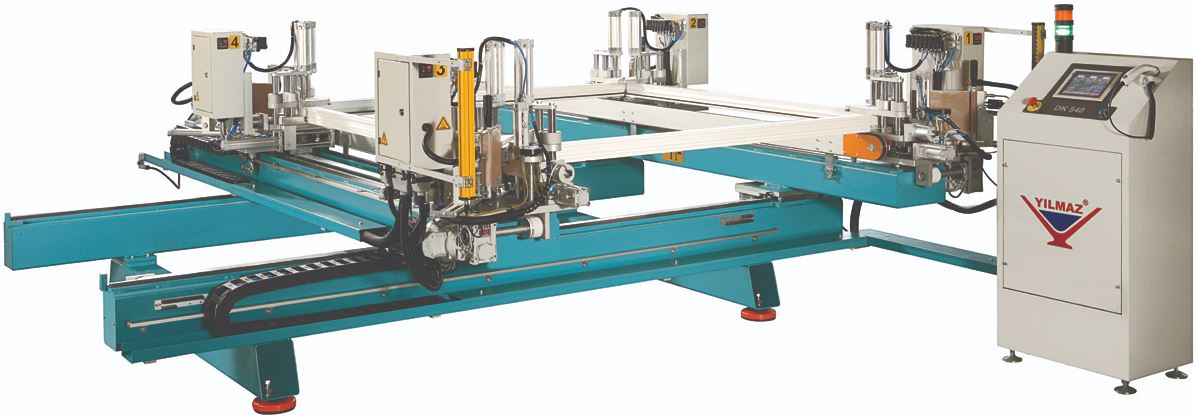

DK 540
Welding
Machine is ideal for welding process of PVC plastic profiles at four corners.
Technical Data
Hmax: 180 mmHmin: 30 mmWmax: 130 mmWmin: 30 mm
Profil
---
Blade Speed
55 L/min
Air Consumption
1.690 Kg
Weight
STANDART AKSESUARLAR
- ✓ Manual greasing pump
- ✓ 1 set of sash welding mould according to 70 mm of profile height
- ✓ 1 set of adaptor for frame profile
OPSIYONEL AKSESUARLAR
- ✓ SA 250 cooling unite
- ✓ CS 240 gasket pressing system
- ✓ Welding fixture set for lame sash
- ✓ Special welding moulds on demand
GENEL OZELLIKLER
- ✓ Fully automatic four corner welding of PVC window profiles at 90°
- ✓ Welding of a complete window frame or sash in one cycle
- ✓ All profile related welding parameters are individually programmable
- ✓ Automatic line can be set by combining with Cooling Unite (SA 251), Corner Cleaning Machine (CNC 609-611) and Rotating Robot (SA 261)
- ✓ Automatically setting the standard (2 mm) or seamless (0.2 mm) welding options
- ✓ Long-period of teflon usage thanks to the teflon roller system
- ✓ Automatically discharging of the frames after welding operation
- ✓ Saving of time by means of practical mould change system
- ✓ Barcode scanner
- ✓ Operator safety barrier
- ✓ Adjusting the heat between 0-300°C via electronic thermocouple
- ✓ Minimum welding measurement: 400 x 400 mm (see below sketch and tech. schema)
- ✓ Maximum welding measurement: 3100 x 2700 mm (see below sketch and tech. schema)
- ✓ Memory capacity to save up programs of 900 different profiles
- ✓ Parameters are set easily by means of 8'' LCD colour touch screen
