KD 350 D - Miter Saw Machine
KD 350D Miter saw cutting machines are designed for straight and angular cutting of PVC, aluminium and wooden profiles
Technical Data
2.2 kW / 400V AC 3P+PE / 50/60 Hz.
Power
2900 RPM
Saw Rotation Speed
D: Ø350 mm / d: Ø30-32 mm
Saw Diameter
---
Flow Rate
---
Pressure
72x76x157
Dimensions (cm)
123 Kg
Weight
Standard Accessories
- ✓ Machine stand
- ✓ Air gun (KD 350 PS)
- ✓ Saw blade cooling system (KD 350 PS)

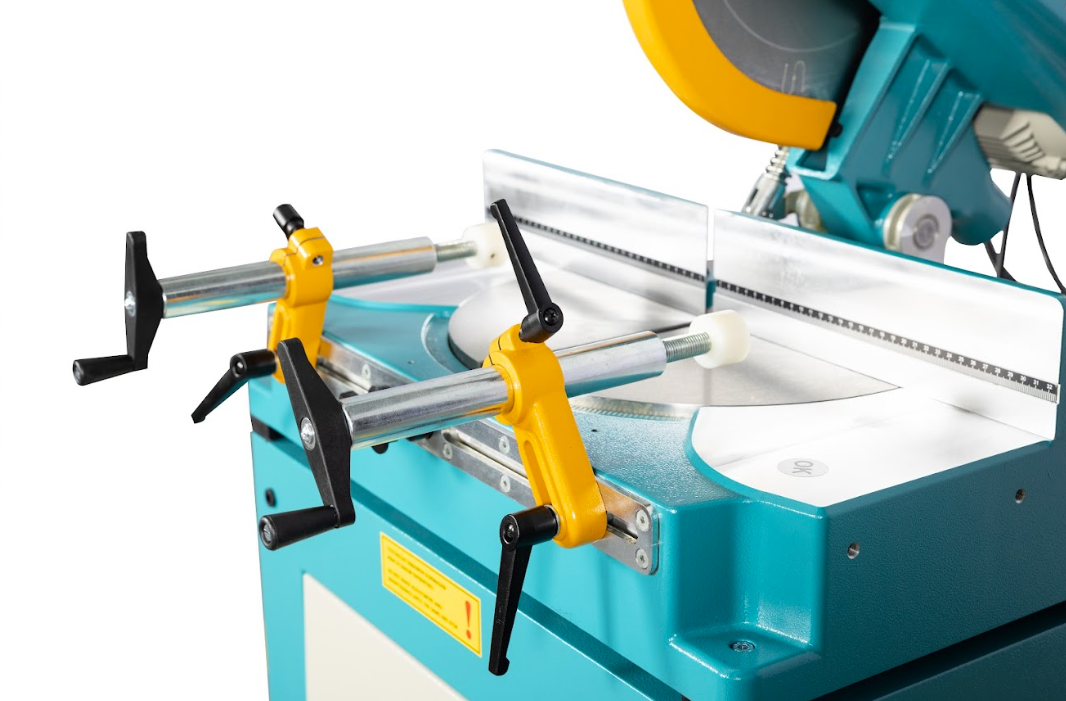

- ✓ 2x pneumatic horizontal clamps (KD 350 PS)

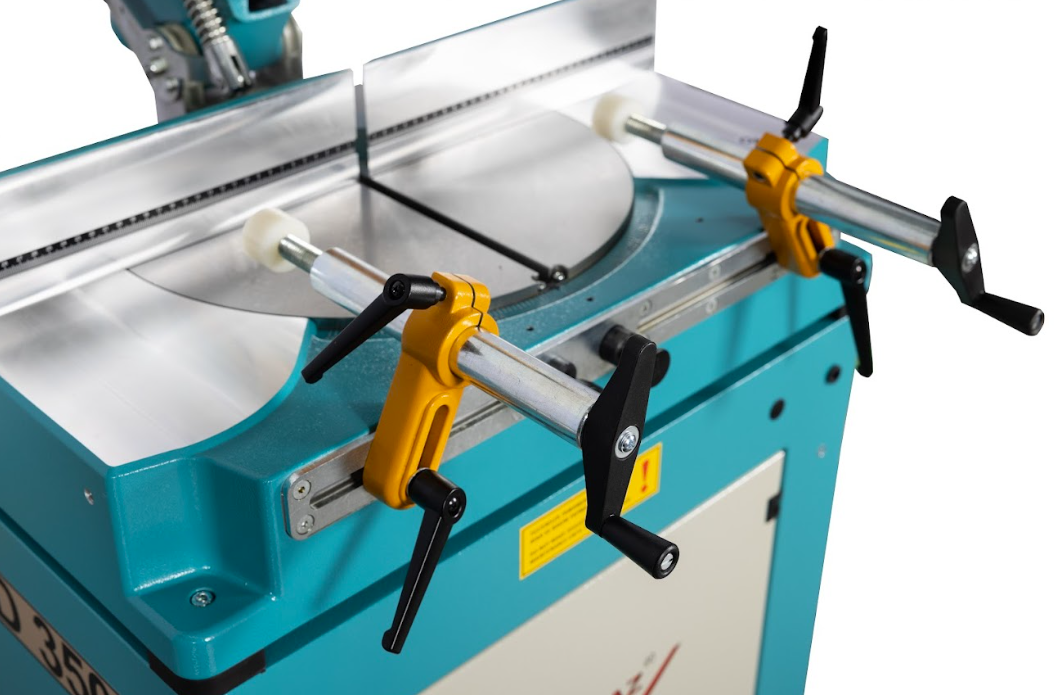

- ✓ 2x manual horizontal clamp
Optional Accessories
- ✓ MKN 300 length stop-left (3m)
- ✓ MKN 300 length stop-right (3m)
- ✓ DKN 302 length stop-right (3m)
- ✓ DKN 602 length stop-right (6m)
- ✓ Spare saw blade, Ø 350 mm
General Features

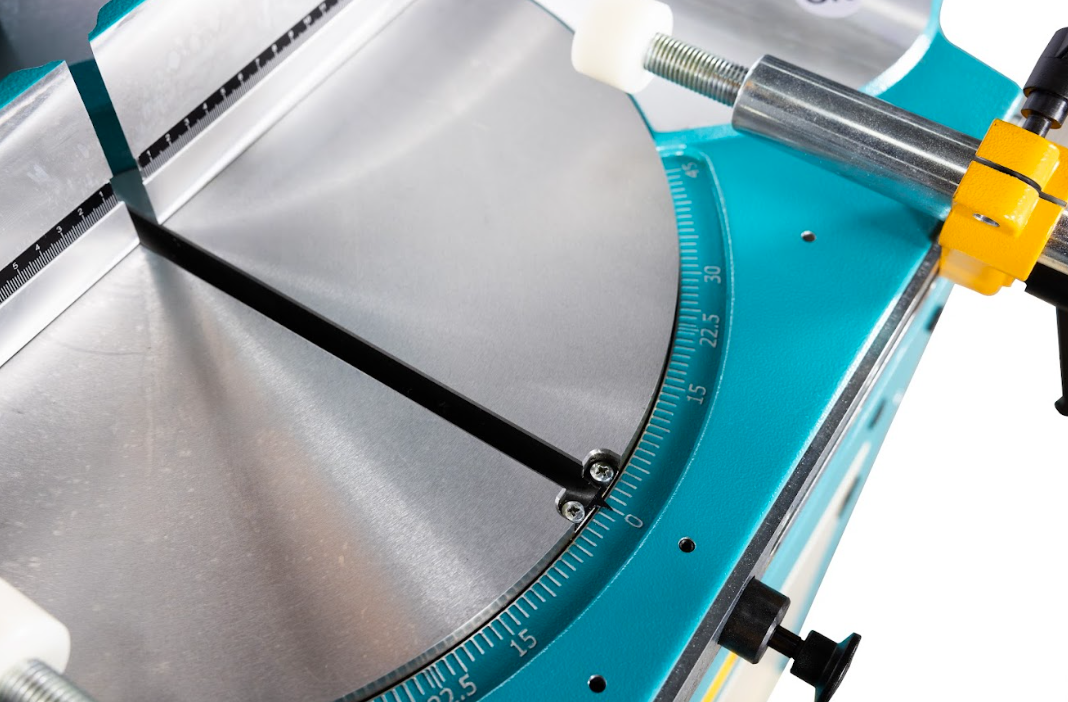

- ✓ Location points at 45°-30°-22.5°-15°-0° both left and right
- ✓ Pivoting range from 45° left to 45° right infinitely adjustable
- ✓ Aluminium construction of body and machine stand made of steel sheet
- ✓ Robust mechanical construction enables the ease of adjustment for the requested cutting angles

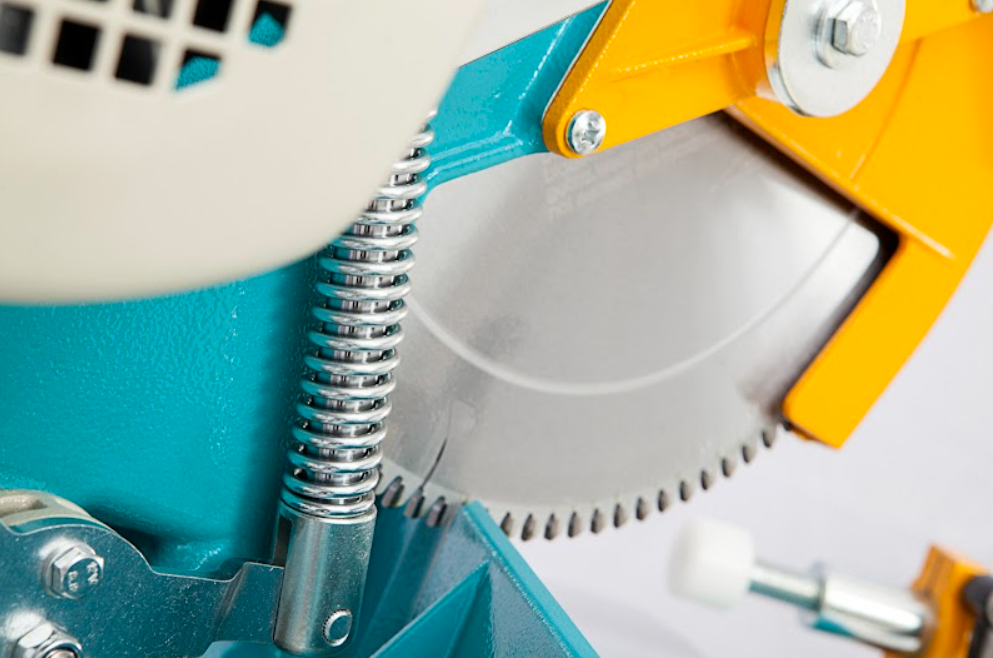

- ✓ Strong spring system and protective shield
