MK 420
Cutting

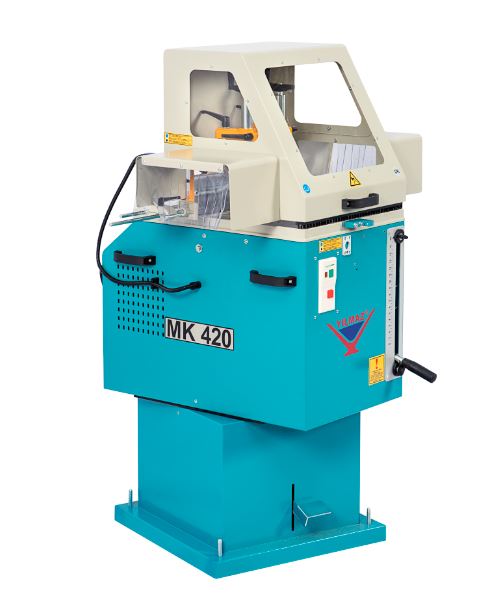

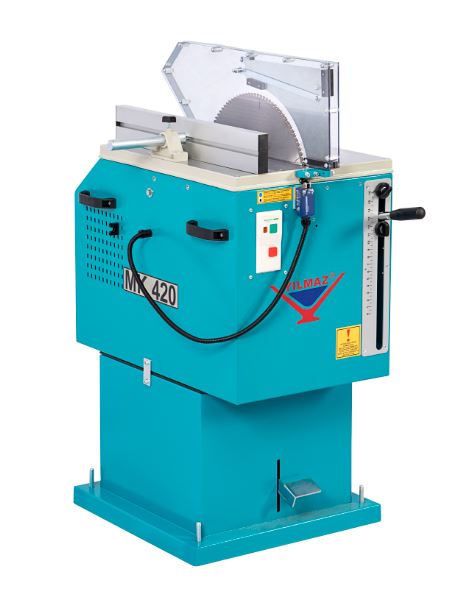

MK 420 , MK 420 PS and MK 450 are manual cutting machines designed for straight and graduated cutting of PVC, aluminium, brass, wood and non-ferrous materials and offered to the user at a very nominal price.
Technical Data
2.2 kW / 4A / 400V AC 3P+PE / 50/60 Hz.
Motor Power
---
Blade Speed
D: Ø420 mmd: Ø30/32 mm
Blade Diameter
---
Air Consumption
---
Air Pressure
725x86.5x135
Dimensions
142 Kg / 113 Kg
Weight
STANDART AKSESUARLAR

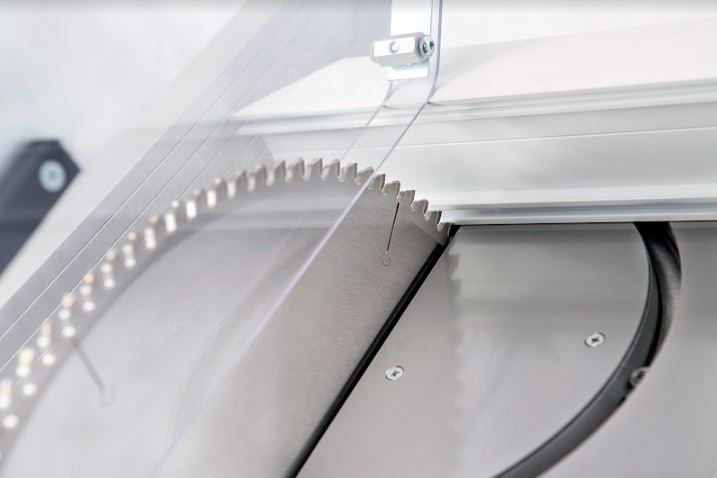

- ✓ Equipped with saw blade Ø 450 mm
- ✓ Miter stop
- ✓ Profile length stop
- ✓ Pneumatically working spray saw blade lubrication system (MK 420 PS)
- ✓ Electrically working spray saw blade lubrication system (MK 420 – MK 450)
- ✓ 2 x mechanic top clamps (MK 420 – MK 450)
- ✓ 2 x pneumatic top clamps (MK420 PS)
- ✓ Safety guard for lateral cutting operations (MK 420 PS)
OPSIYONEL AKSESUARLAR
- ✓ Safety guard for longitudinal cutting operations (MK 420 PS)
- ✓ 2 x vertical clamps
- ✓ MKN 300 length stop (3m)
- ✓ Connection kit for MKN and DKN length stops
- ✓ Spare saw blade, Ø 450 mm
GENEL OZELLIKLER
- ✓ Manual upward saw stroke
- ✓ The back fence is adjustable to allow the most effective use of the saw blade capacity for wide and flat profiles

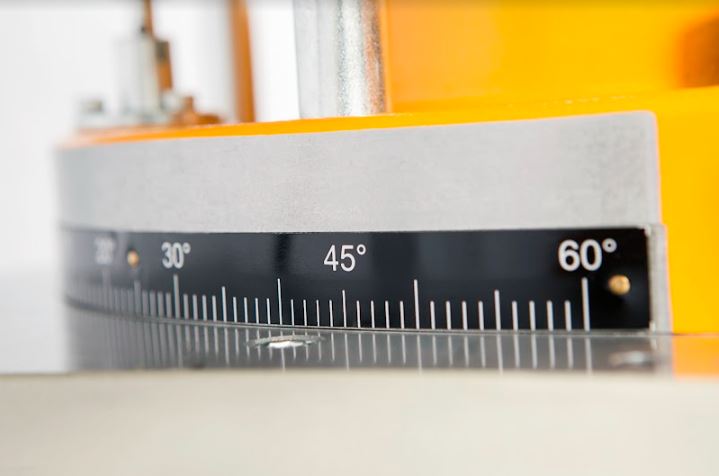

- ✓ Location points at 60°, 45°, 30°, 22.5°, 15°, 0° for both left and right
- ✓ Wide angle cutting range up to 60° to the right and 60° to the left
- ✓ Adjustable machine working direction by means of rotatable (360°) platform via. foot pedal
- ✓ Easy saw blade change
- ✓ It has the ability of lateral and longitudinal cutting operations
