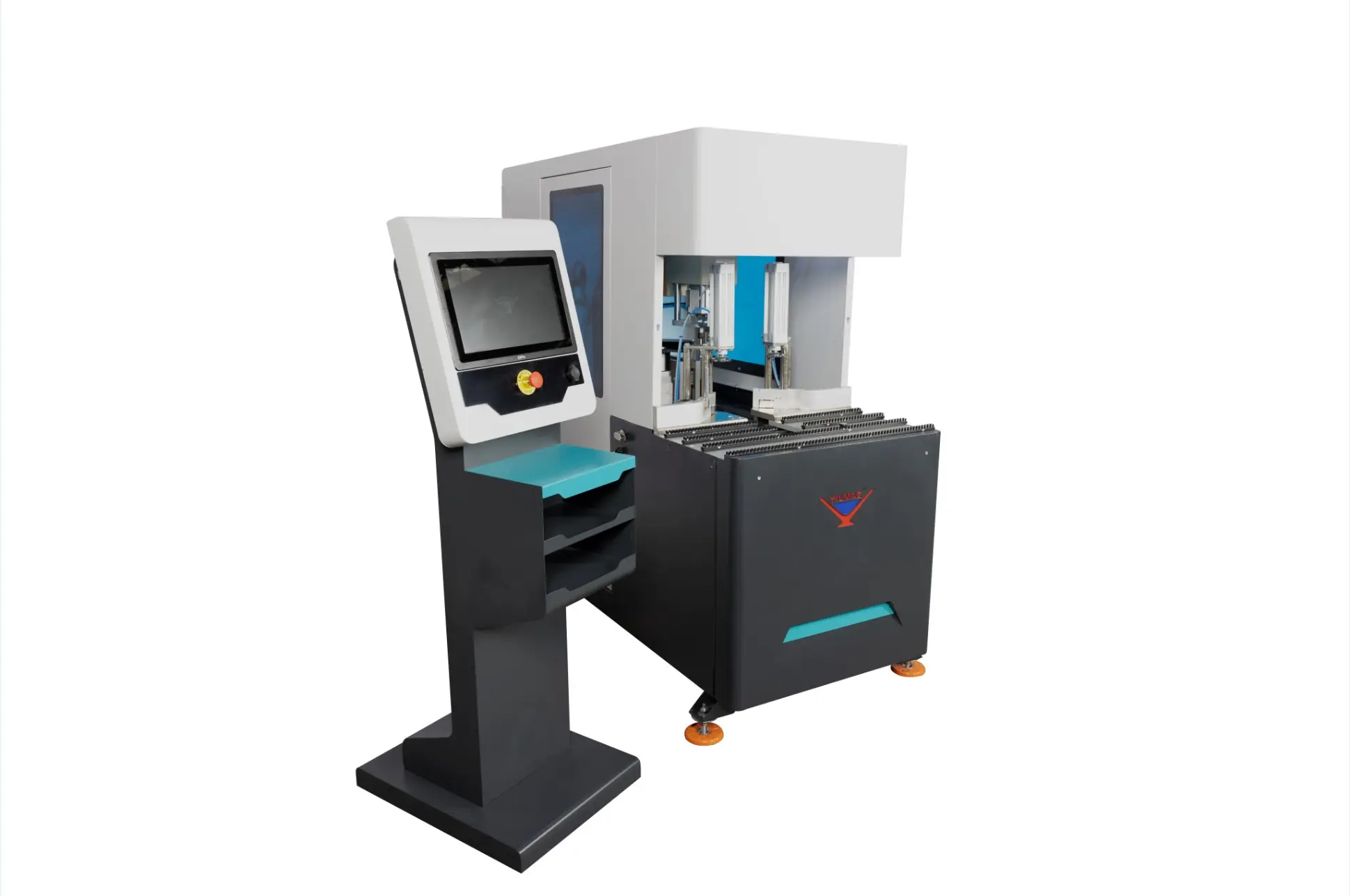

CNC 611
Machining Centers
Corner Cleaning Machines are designed for the cleaning of welding chips of PVC profiles that is welded at angle of 90° CNC 609: 2 x servo drive motors, CNC 611: 4 x servo motor drives
Technical Data
3.85 kW / 400V AC 3P PE 50/60 Hz.
Motor Power
18.000 RPM
Blade Speed
6.000 RPM D:Ø250- d:30/32 mm
Blade Diameter
180 L/min.
Air Consumption
6-8 BAR
Air Pressure
231x240x177
Dimensions
700.0
Weight
STANDART AKSESUARLAR
- ✓ Total of 11 tools, consisting of a cleaning saw, internal scraping blades and milling cutters
- ✓ Brushed window support table
- ✓ Line harmonization Package (CNC 608 R)
GENEL OZELLIKLER
- ✓ All unit parameters can be set independently according to the frames
- ✓ Automatic frame and sash profile recognition system
- ✓ Automatic line can be made by combining with Four Corner Welding Mach. (DK 540), Cooling Unit (SA 251) and Rotating Robot (SA 261) at a later date
- ✓ The upper and lower surfaces are cleaned with two separate cleaning units operating independently of each other (CNC 611)
- ✓ Profile width and height measurement system
- ✓ 11 set of automatic profile cleaning knives
- ✓ Separate cleaning knives for color and white profiles
- ✓ Memory capacity for 65.000 different profiles
- ✓ Windows based industrial PC and 15’’ LCD touch screen colour monitor
- ✓ Remote connection via internet and providing technical support
- ✓ Manual adjustment of feed rates on the control panel
- ✓ Transferring facility of the new programs via USB
- ✓ Portable touch screen control panel
- ✓ Low pressure control valve
- ✓ Automatic cartridge lubrication system
- ✓ Phase control equipment
- ✓ Processing capacity with 200-210 window frames in 8 hours for CNC 609
- ✓ Processing capacity with 240-250 window frames in 8 hours for CNC 611
